# Identische Punkte

Bitte beachten:

Wenn Sie eine Antenne über Zeno Connect nutzen, muss die Antenne über den NMEA Treiber verbunden werden, damit die folgenden Funktionen zur Verfügung stehen. &#x20;

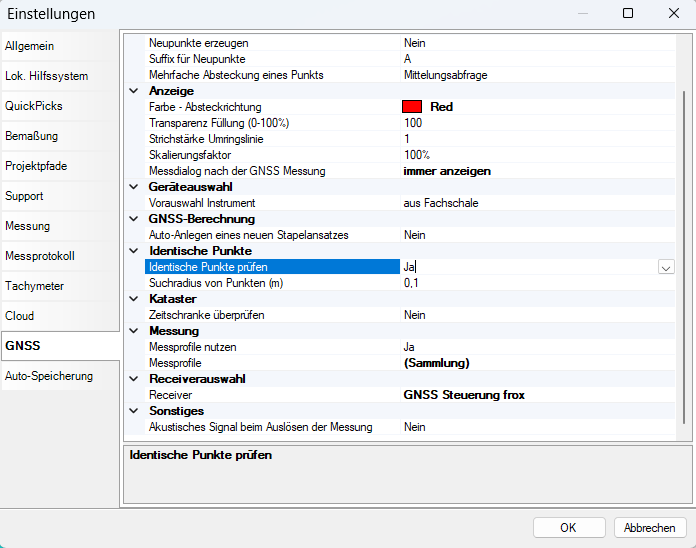

Unter Extras / Programmeinstellungen / GNSS unter "Identische Punkte prüfen" \<Ja> ausgewählen.

<figure><img src="https://415365806-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FavDnAykoA7C7prWiDq6h%2Fuploads%2F9LmTd5NqlIVuHUMSVqDK%2Fgrafik.png?alt=media&amp;token=836d0f55-6cd2-4149-93b8-fcfcb3b3a263" alt=""><figcaption></figcaption></figure>

Es erscheint folgendes Fenster, wenn ein Punkt innerhalb eines vordefinierten Umkreises gefunden wird. Der Punkt wird in der Liste angezeigt.&#x20;

Wird  der Punkt durch Anklicken ausgewählt (grau unterlegt), dann steht auch die Funktion "Punkt übernehmen" zur Verfügung.

<figure><img src="https://415365806-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FavDnAykoA7C7prWiDq6h%2Fuploads%2Fh1GMfLTICg9kY60bP8C1%2FScreenshot%202026-11-11%20085506.png?alt=media&amp;token=216e2107-808a-4b45-beed-46ff33d5f1c8" alt=""><figcaption></figcaption></figure>

Legen Sie hier fest, ob Sie einen neuen Punkt erzeugen möchten oder einen der in der Liste angezeigten Punkte erneut angemessen haben, weil die vorherige Bestimmung z.B. nicht in Ordnung war. Sie haben auch die Möglichkeit abzubrechen, wenn Sie zum Beispiel zufällig zweimal hintereinander eine Messung ausgelöst haben. Dann wird diese Messung nicht gespeichert.

#### **Neuer Punkt**

Es wird ein neuer Punkt mit der nächsten freien Punktnummer erzeugt.

<figure><img src="https://415365806-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FavDnAykoA7C7prWiDq6h%2Fuploads%2FX9hTDChvfK2FKxJLU744%2Fgrafik.png?alt=media&amp;token=87cca47f-154a-4b70-b91f-b01df3b056bb" alt=""><figcaption></figcaption></figure>

#### **Abbrechen**

Die Messung wird nicht gespeichert.

#### Punkt übernehmen

Falls der Punkt bereits gemessen war, erscheint folgender Dialog:

<figure><img src="https://415365806-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FavDnAykoA7C7prWiDq6h%2Fuploads%2FEc9YWsRxEGeKbiWRsSvQ%2Fgrafik.png?alt=media&amp;token=f9ef2e1d-0f23-43b0-9034-1773703a67cf" alt=""><figcaption></figcaption></figure>

Bestätigen Sie den Dialog mit \<OK>, können Sie im nächsten Fenster eine Entscheidung treffen.

<figure><img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/KUWUXeCSteRmYI8uRF32/image.png" alt=""><figcaption></figcaption></figure>

Es kann die alte oder die neue Messung übernommen werden. Für die neue Messung kann eine neue Punktnummer vergeben werden. Es kann auch gemittelt werden (Beide).&#x20;

## Bei Nutzung von Zeno Connect

#### Mittelungsdialog

<figure><img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/7Whn48jJJcGkbKLpRxee/grafik.png" alt=""><figcaption></figcaption></figure>

#### Objekteditor Reiter GNSS

<figure><img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/SqpucYx8LzwqwEwhD3vc/grafik.png" alt=""><figcaption></figcaption></figure>

#### Eintrag der Mittelung als Handeingabe

<figure><img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/av1SeJDAZZgkJJrwLc5o/grafik.png" alt=""><figcaption></figcaption></figure>

#### GNSS Bericht

<figure><img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/E1sexZplanupVTDd2sd9/grafik.png" alt=""><figcaption></figcaption></figure>


---
