# Einstellungen

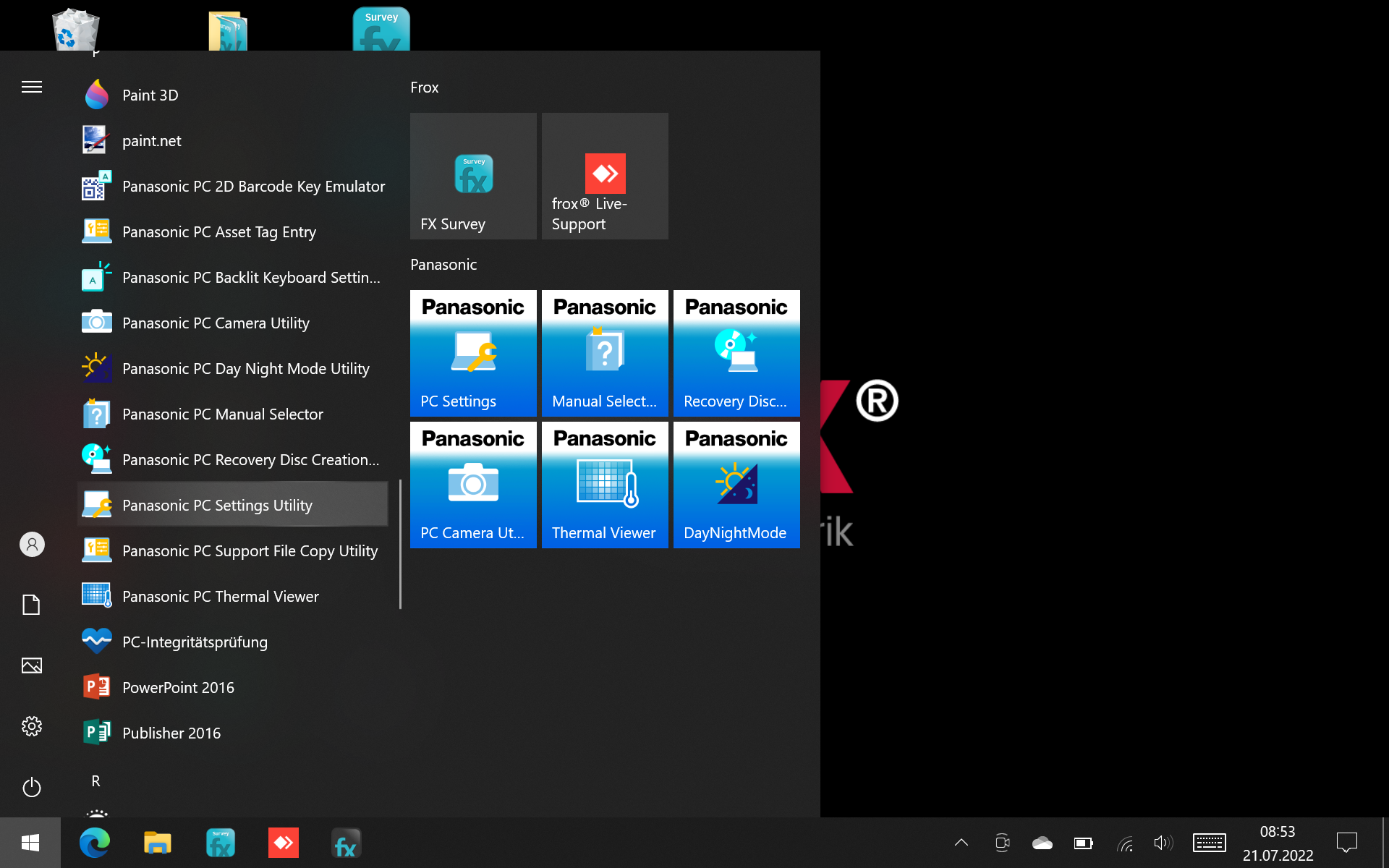

Über das Startmenü kann das „Panasonic PC Settings Utility“ geöffnet werden, die Einstellungsoberfläche für den Panasonic FZ-G2.

<img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/3a3kBE3diVluKdKaSbkU/Screenshot%20(41).png" alt="" width="563">

## Reiter Einstellungen

### &#x20;**Energieverwaltung**&#x20;

Hier kann festgelegt werden, ob beim Berühren des Umgebungssensors eine Funktion ausgeführt werden soll, z.B. Bildschirm ausschalten.

<img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/aPzxA6F2IF0qTepIBf1F/Screenshot%20(48).png" alt="" width="563">

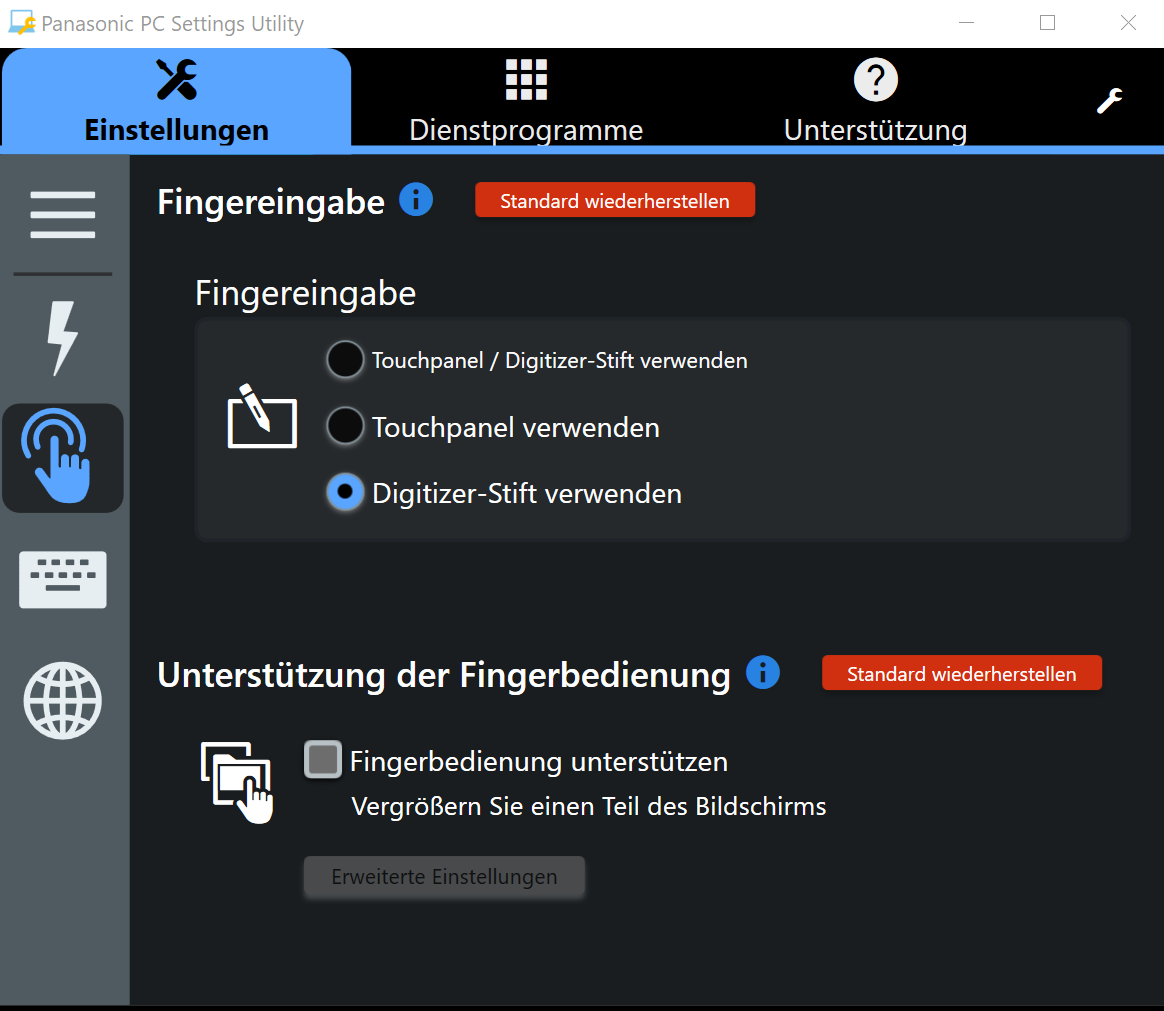

### **Fingereingabe**

Hier kann eingestellt werden, wie die Bildschirmeingabe erfolgen soll.&#x20;

<img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/aeiwigpXcwSyqawcgsSt/Screenshot%20(42).png" alt="" width="563">

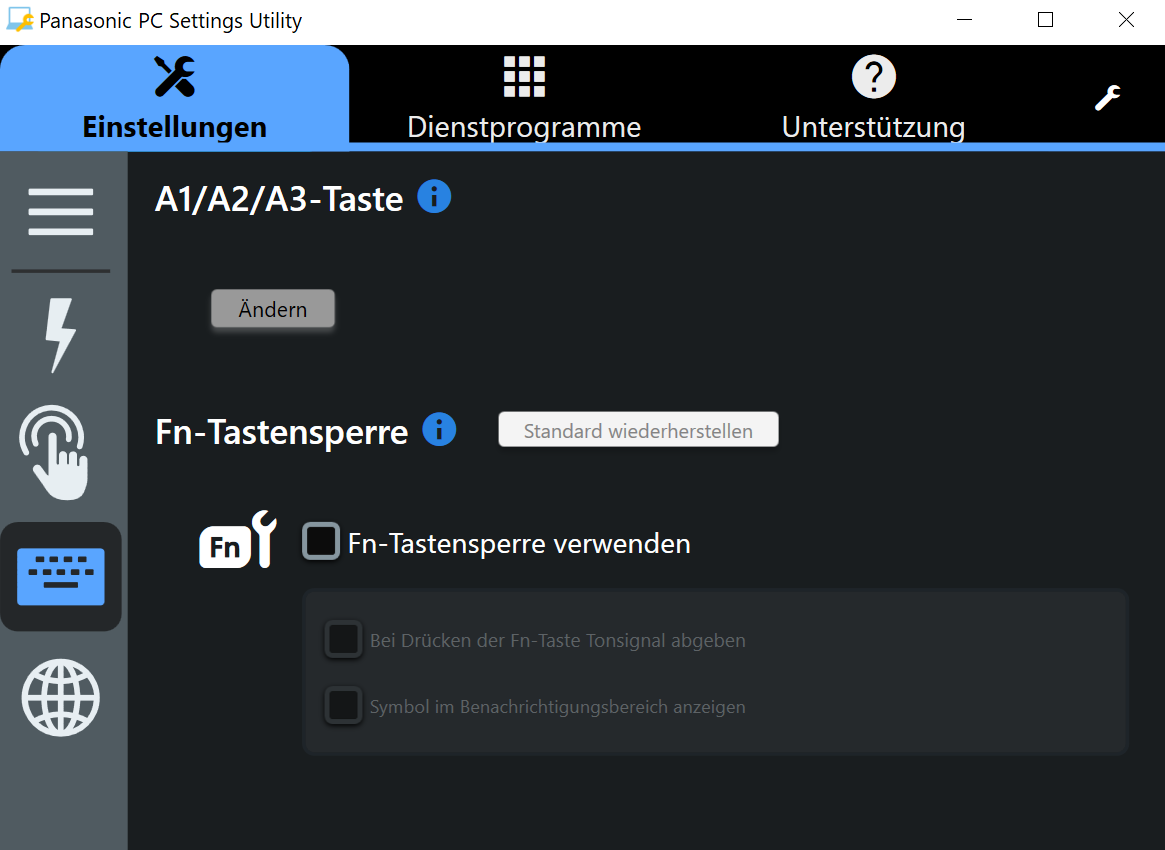

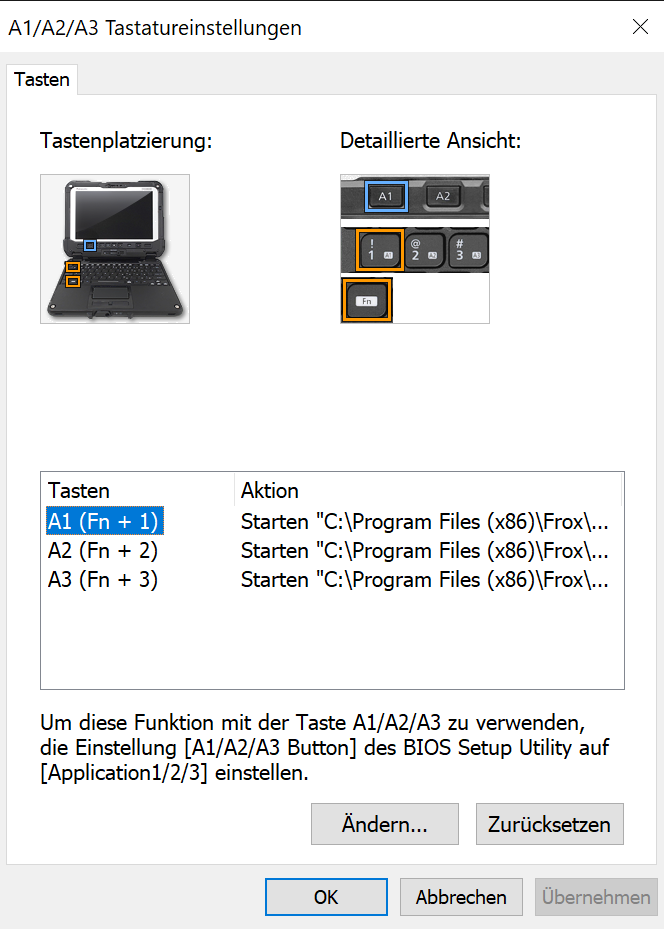

### **Einstellungen für die Funktionstasten A1/A2/A3**&#x20;

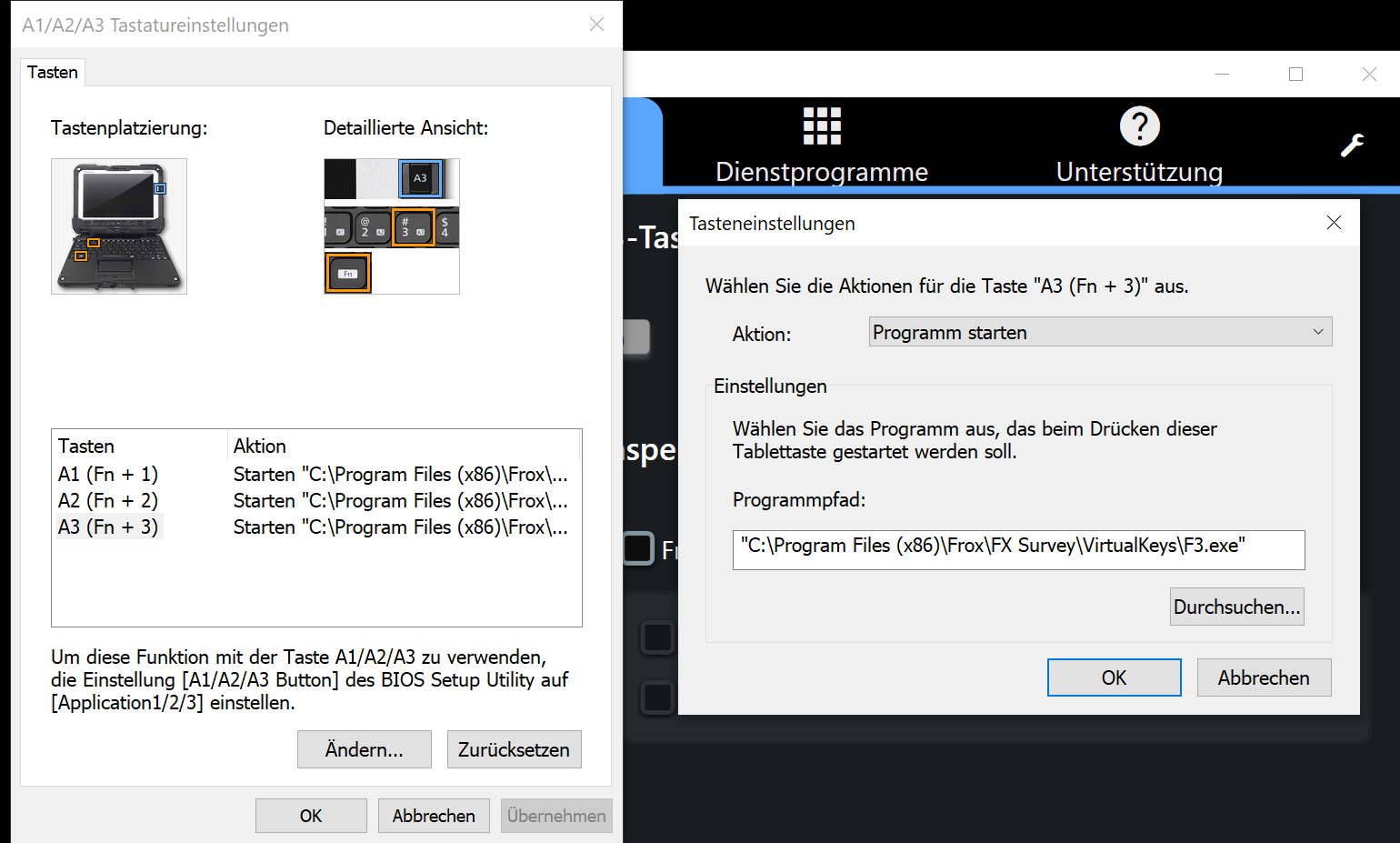

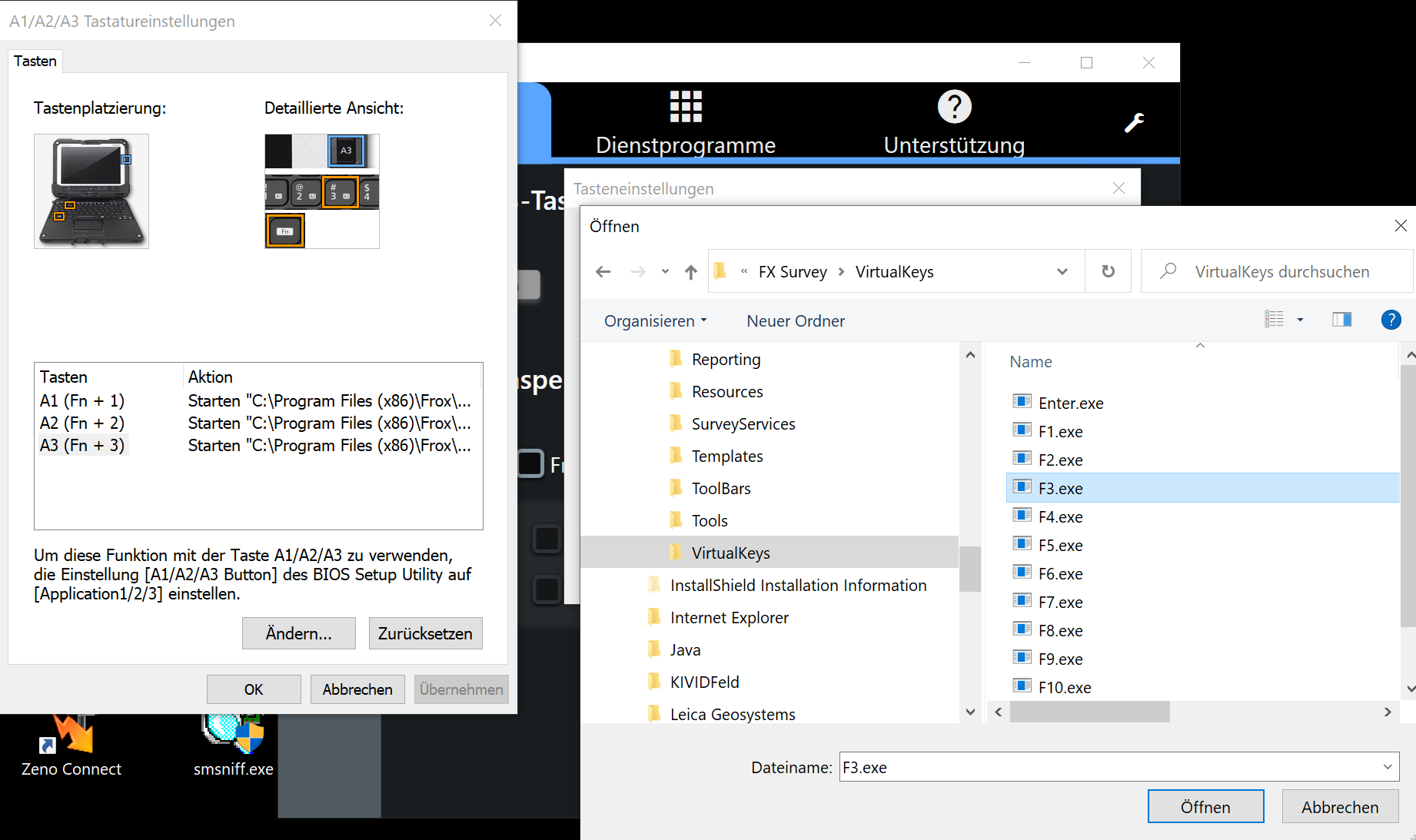

Die Tasten A1/A2/A3 können mit FX Programmfunktionen belegt werden. Dazu nutzt FX Virtual Keys. Wählen Sie beim Programmpfad den Pfad zum entsprechenden Virtual Key aus: C:\Program Files (x86)\Frox\FX Survey\VirtualKeys

Für das Auslösen der Messung (Tachymeter und GNSS) werden die Virtual Keys F2 (Tachymeter) und F3 (GNSS) benötigt und den Tasten des Toughbooks A1, A2 oder A3 zugewiesen. Die Taste A3 eignet sich besonders für die Auslösung der Messung, da diese mit dem rechten Daumen bedient werden kann.&#x20;

**FZ-G2 mk1**

<img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/zQU91QSMPtpnzbK03cFD/image.png" alt="" width="563">

**FZ-G2 mk2**

<figure><img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/2G7xnwzRkpchJ3tVhjv8/image.png" alt=""><figcaption></figcaption></figure>

**FZ-G2 mk1**

<img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/1O8AG0xy2L4IqAYL2JUs/Screenshot%20(44).png" alt="" width="498">

![](https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/OK2T0p93Jfqinh3VgAmR/Screenshot%20\(45\).png)

**FZ-G2 mk2**

<figure><img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/fiIWKnAgFAYCdFtk8Er0/image.png" alt=""><figcaption></figcaption></figure>

**FZ-G2 mk1**

![](https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/VbLagluRRlawvn62NlHJ/Screenshot%20\(46\).png)

**FZ-G2 mk2**

<figure><img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/DRu3ffTgpmymeXBz9EtX/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/AthtkPPoWQffAO2RsQq8/image.png" alt=""><figcaption></figcaption></figure>

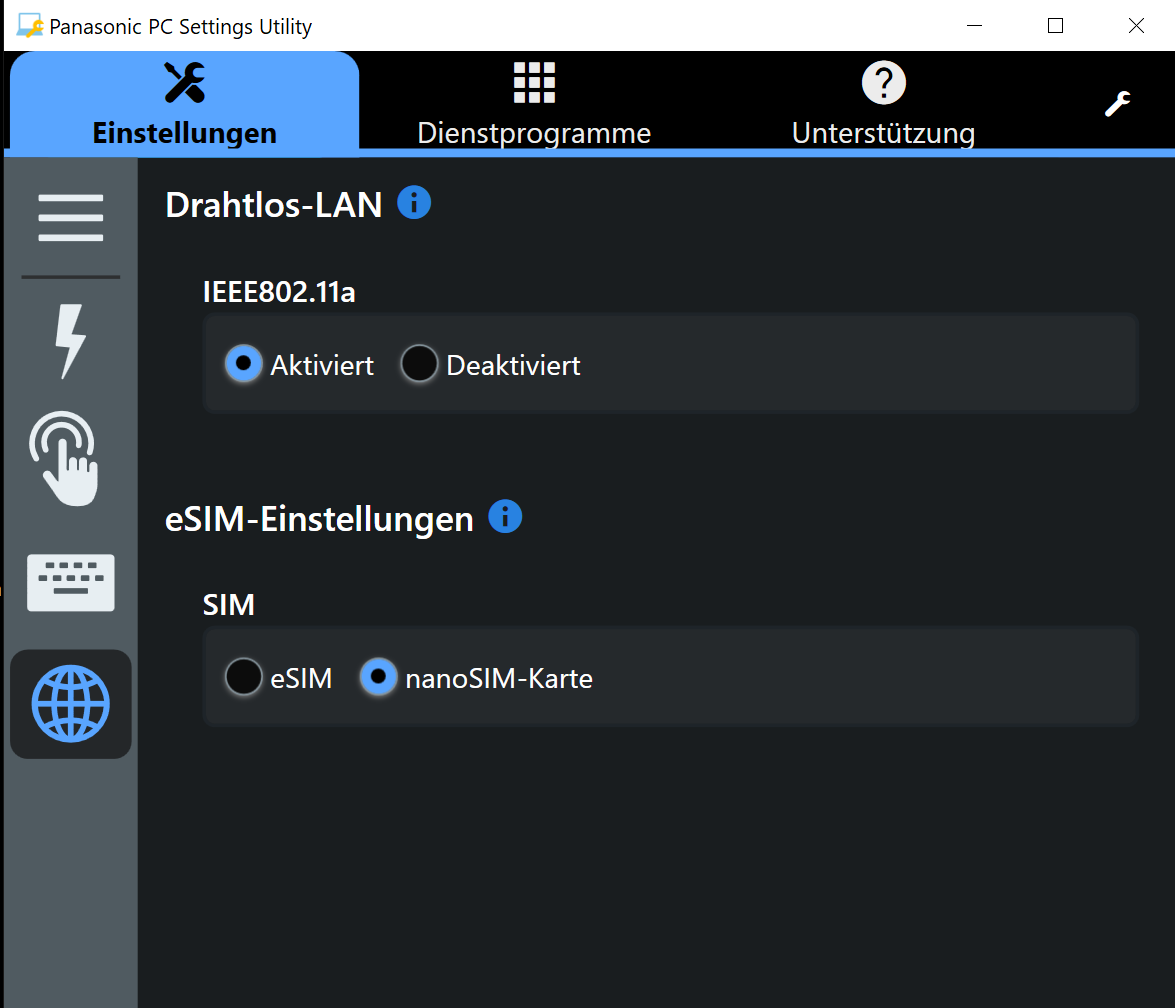

### **Internetverbindung**

<img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/P52fc08rWj0MGc9eZJrz/Screenshot%20(47).png" alt="" width="563">

## **Reiter Unterstützung**

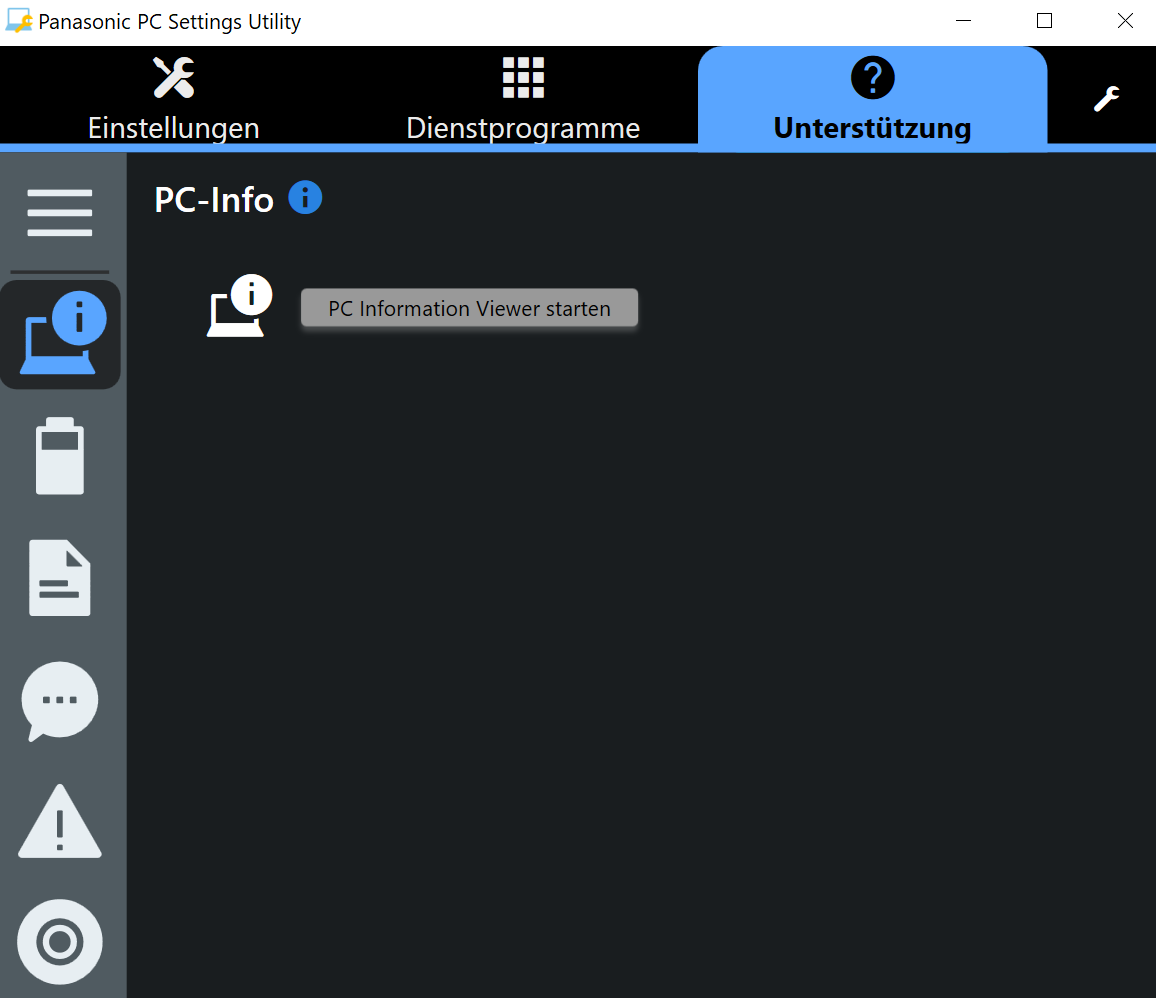

### PC-Informationen

Hier werden Informationen über das Tablet wie zum Beispiel Modellnummer und Seriennummer aufgelistet.

<img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/beYY8drxqwIiEMNBoAm5/Screenshot%20(50).png" alt="" width="563">

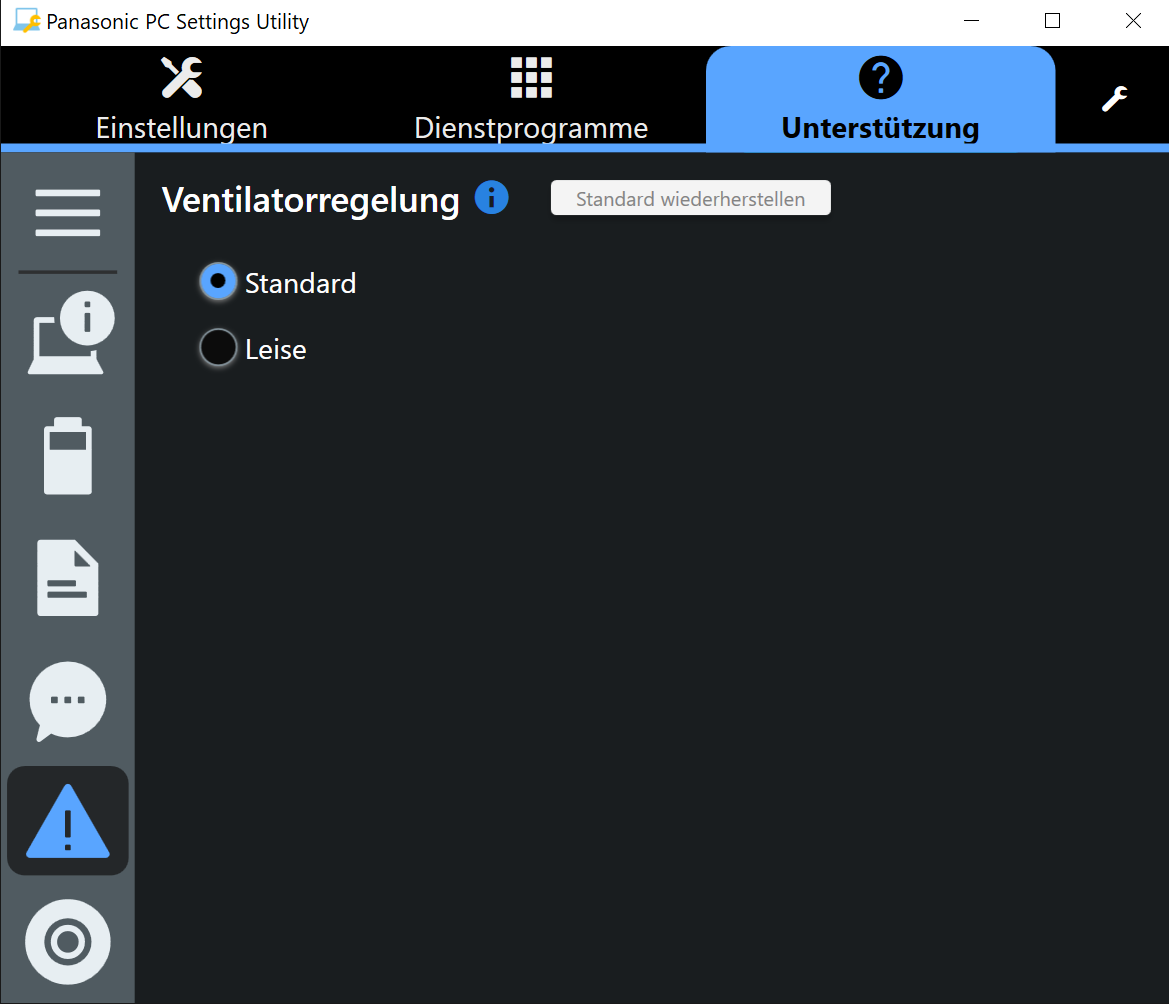

### **Ventilatorregelung**

<img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/QL4xj7oo868EYV1m5Diy/Screenshot%20(49).png" alt="" width="563">


---
