# Messpunkte in die Grafik klicken

Voraussetzung für das Klicken von Punkten in die Grafik ist, dass der Button "Messpunkte frei setzen" aktiviert ist.

<figure><img src="/files/Krt7OUTX9IOADcGaupt0" alt=""><figcaption></figcaption></figure>

Sollte der Button nicht in Ihrer Werkzeugleiste zur Verfügung stehen, aktivieren Sie bitte die Werkzeugleiste Programmeinstellungen.

<figure><img src="/files/kpQul6fFIAbLyOOPSH53" alt=""><figcaption></figcaption></figure>

Alternativ setzen Sie unter Extras / Programmeinstellungen / Allgemein / Fangen / Messpunkte frei setzen ein "Ja".

<figure><img src="/files/69OR6nOlMPJZg2Gbop1h" alt=""><figcaption></figcaption></figure>

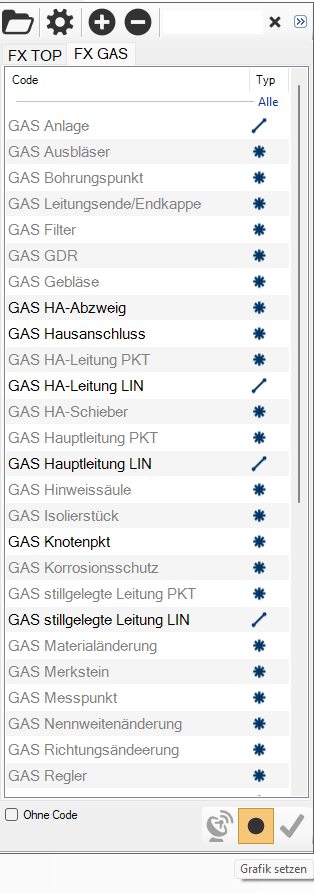

Um Punkte in die Grafik zu klicken, aktivieren Sie den Button "Grafik setzen" ![](/files/5Ymwj7REiAb9ZpPX6Kfz).

![](/files/eirKowCjR0FTMPEVa1fv)


---
