# Menü GNSS

*Menü GNSS*

Modul **M-FX GNSS Steuerung frox**

<figure><img src="https://415365806-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FavDnAykoA7C7prWiDq6h%2Fuploads%2Ft7DlxQfCcpk7Dvz4Ki9w%2Fgrafik.png?alt=media&amp;token=588f4fd4-7283-41e0-bb5d-cb0b8bf8109b" alt=""><figcaption></figcaption></figure>

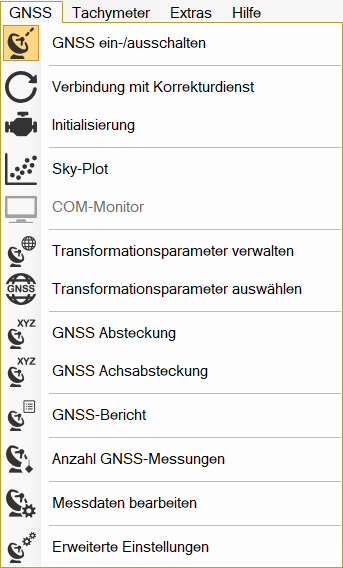

Mit dem Modul schaltet sich die Menüleiste GNSS frei. I.d.R. wird der Außendienst das GNSS Gerät über die Werkzeugleiste GNSS bedienen. Vorteil ist ein einfacher Workflow. Das Menü beinhaltet tiefer gehende Einstellungen und verfügt über zusätzliche Funktionen. Diese sind im Einzelnen:

| **Icon**                                                                                                                      | **Menütitel**        | **Beschreibung**                                                                                                                                                                                                                                                                                                                                                                                                  |
| ----------------------------------------------------------------------------------------------------------------------------- | -------------------- | ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/3dzj7ZT8wAS2dAuCF3K6/0" alt="" data-size="original"> | GNSS ein/ausschalten | <p>Der GNSS-Empfänger wird initialisiert bzw. die Verbindung getrennt.</p><p>Zur Messung muss die Verbindung des GNSS-Empfängers mit dem Außendienst PC aufgebaut werden:</p><p>Es erscheint ein kleines Fenster in dem Grafikfenster, in dem der Stand der Initialisierung dargestellt wird. Ist die Initialisierung abgeschlossen, erscheint ein blauer GNSS-</p><p>Cursor in der Mitte des Grafikfensters.</p> |

| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/JJpbzoQciSRUwwJpdU6d/1" alt="" data-size="original">  | Verbindung mit Korrekturdienst                                                                                         | Verbindung mit dem Korrekturdatendienst aufbauen oder trennen.                                                                                                         |
| ------------------------------------------------------------------------------------------------------------------------------ | ---------------------------------------------------------------------------------------------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/zU6WpkYljWQXtb4753RM/2" alt="" data-size="original">  | Initialisierung                                                                                                        | Startet den RTK-Modus innerhalb des GNSS-Empfängers neu.                                                                                                               |
| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/EQHzrJiyI9nr8eVeBHG2/3" alt="" data-size="original">  | Sky-Plot                                                                                                               | Darstellung der Satellitenkonstellation.                                                                                                                               |
| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/uWB4Pt2Mo5IkjxMFSgkK/4" alt="" data-size="original">  | COM-Monitor                                                                                                            | Darstellung der empfangenen NMEA-Daten des GNSS- Empfängers.                                                                                                           |
| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/lB2JkMEEZ7hgdGcpcRI1/5" alt="" data-size="original">  | Transformationsparameter verwalten                                                                                     | Verwaltung der Transformationsätzen (neu anlegen, Parameter / Daten ändern)                                                                                            |
| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/2ICyZF5F8RBcb0nrNhX3/6" alt="" data-size="original">  | Transformationsparameter auswählen                                                                                     | Auswahl der Transformationssätze.                                                                                                                                      |
| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/fgAWsiBZY5vqKkZZWycg/7" alt="" data-size="original">  | GNSS Absteckung                                                                                                        | Absteckung von Punktobjekten mit Anzeige der Abweichungen und der Soll-Ist-Richtung innerhalb des Grafikfensters.                                                      |
| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/BDZqnUNiBWkY1zK4LNtR/8" alt="" data-size="original">  | GNSS-Bericht                                                                                                           | Erstellen und Anzeigen des GNSS-Berichtes.                                                                                                                             |
| ![](https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/39kwUABgm69tEvR5PmZl/image.png)                             | Anzahl GNSS Messungen                                                                                                  | Darstellung der Anzahl der GNSS Messungen zu einem Punkt.                                                                                                              |
| ![](https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/nba5FTB8aJukcCG8kXzZ/image.png)                             | Messdaten bearbeiten                                                                                                   | Hier können die Messdaten bearbeitet werden.                                                                                                                           |
| <img src="https://content.gitbook.com/content/avDnAykoA7C7prWiDq6h/blobs/vtjZwHWO6Ortn0hzLhsy/10" alt="" data-size="original"> | <ul><li>Erweiterte Einstellungen</li><li>Einstellungen Leica Zeno Connect </li><li>Geräteprofil: "Unbekannt"</li></ul> | Die Einstellungen sind abhängig von der Auswahl des Receivers in den Programmeinstellungen unter GNSS. Je nach Einstellung öffnet sich hier das entsprechende Fenster. |

**Detaillierte Informationen zu den Abläufen finden Sie im Kapitel** [**Messen mit GNSS**](https://survey.fmpx.docs.frox-it.de/messen-mit-gnss/projekt-anlegen.md)**.**


---
